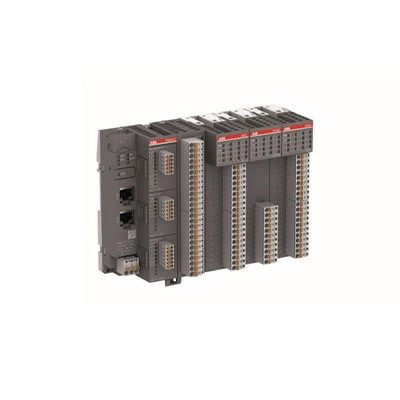

AC500-eCo V3 PLC

The AC500-eCo V3 PLC is a series of compact and flexible programmable logic controllers designed for cost-sensitive industrial applications. This product serves as an entry-level automation solution

The chemical solution provides a ready-made solution that includes all necessary components. The intelligent elements on the new CPU make it easy to meet the requirements of the target application. Its unique

The distinctive feature lies in the addition of three option panels on a single CPU, which enhances application functionality without increasing device size. This design aligns with ABB's

It is closely related to the familiar design language of the AC500 PLC platform.

feature

128kB or 512kB program memory, with a bit instruction execution time of 0.08 μs

The CPU modules PM556 and PM566 feature 512kB of program memory, suitable for more complex applications.

Integrate one RS485 serial port, with an optional second one

The local system can support up to 10 I/O modules (standard S500 and/or S500-eCo modules can be used in combination), with a maximum of 335 I/O channels available

Optional SD card for data storage and program backup

The maximum high-speed counting rate can reach 50 kHz

The analog channels on the PM564 and PM566 CPUs can be configured as digital input

MODBUS data can be directly stored in the internal data memory

The CPU with integrated Ethernet supports web servers, FTP servers, and SNTP

The PM556 and PM566 CPUs can send emails via an SMTP client

Programming is based on the IEC61131-3 standard, allowing you to quickly get started writing programs in the Automation Builder project components

Multiple communication options

The AC500-eCo PLC offers a variety of standard communication options

Integrating a serial port simplifies data exchange

The second serial port can be expanded for program downloading and communication

The CPU with integrated Ethernet supports a web server, FTP server, and SNTP
