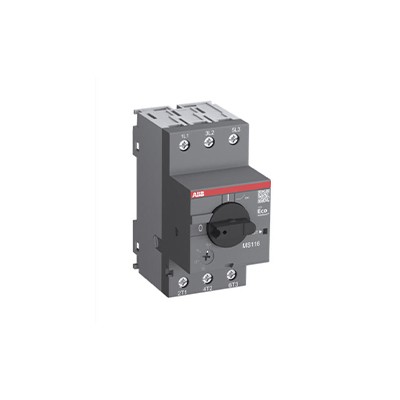

This series of products supports a setting current range from 0.1A to 32A, which can be flexibly adjusted according to the actual load and is suitable for three-phase or single-phase motor protection. It adopts a rotary control design, with temperature compensation function (working temperature -25 ℃ to+60 ℃), and has a short-circuit breaking capacity of up to 50kA, ensuring safe circuit disconnection even in extreme faults.
Main features:
✅ Thermomagnetic release technology provides precise overload and short circuit protection
✅ Additional accessories (such as auxiliary contacts, undervoltage release) can be installed to expand the functionality
✅ Equipped with isolation function, it can safely disconnect the power supply
✅ Compliant with international standard IEC 60947-2, high reliability
✅ Compact structure, supporting DIN rail installation, easy to integrate
This series of products supports a setting current range from 0.1A to 32A, which can be flexibly adjusted according to the actual load and is suitable for three-phase or single-phase motor protection. It adopts a rotary control design, with temperature compensation function (working temperature -25 ℃ to+60 ℃), and has a short-circuit breaking capacity of up to 50kA, ensuring safe circuit disconnection even in extreme faults.
Main features:
✅ Thermomagnetic release technology provides precise overload and short circuit protection
✅ Additional accessories (such as auxiliary contacts, undervoltage release) can be installed to expand the functionality
✅ Equipped with isolation function, it can safely disconnect the power supply
✅ Compliant with international standard IEC 60947-2, high reliability
✅ Compact structure, supporting DIN rail installation, easy to integrate
