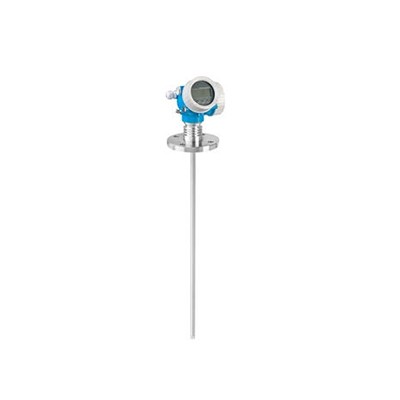

Levelflex FMP52

Specs at a glance

• Accuracy

  Rod probe :+/- 2 mm (0.08 in)
  Rope probe <= 15 m (49 ft):
  +/- 2 mm (0.08 in)
  Rope probe > 15 m (49 ft):
  +/- 10 mm (0.39 in)

• Process temperature

  -50...+200 °C
  (-58...+392 °F)

• Process pressure / max. overpressure limit

  Vacuum...40 bar
  (Vacuum...580 psi)

• Max. measurement distance

  Rod:
  4 m (13 ft) Min DK>1.6
  Rope:
  25 m...30 m (82 ft...98 ft) Min DK>1.6;
  30 m...45 m (98 ft...148 ft) Min DK>1,9

• Main wetted parts

  Rod probe:
  304, 304L, 316L, PTFE, PFA
  Rope probe:
  304, 304L, 316, 316L, PTFE, PFA
