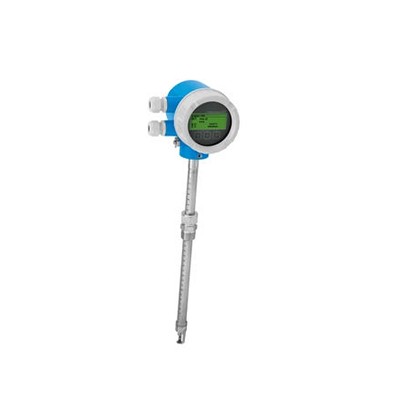

Proline t-mass B 150 thermal mass flowmeter

Specs at a glance

• Max. measurement error

  3 % o.r.
  4 % o.r.
  5 % o.f.s.
  (depending on chosen option of ordering feature "Calibration flow")

• Measuring range

  20 to 720 000 kg/h (45 to 1 587 600 lb/h)
  20 to 1 080 000 kg/h (45 to 2 381 400 lb/h)
  (for air, depending on chosen option of ordering feature "Calibration flow")

• Medium temperature range

  –40 to +100 °C (–40 to +212 °F)

• Max. process pressure

  20 bar g (290 psi g)

• Wetted materials

  Transducer: 1.4404 (316L)
  Insertion tube: 1.4404 (316L); 1.4435 (316L)
  Connection:
  Compression fitting: 1.4404 (316L)
  Sealing ring: EPDM; HNBR; 1.4401 (316)
  Clamping ring: PEEK 450G
