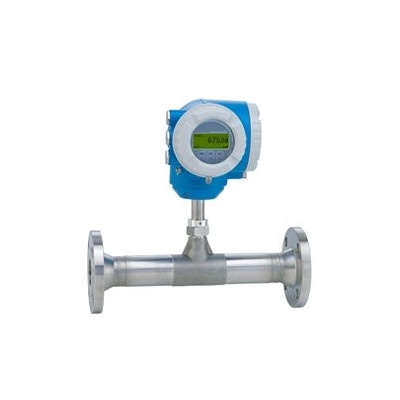

Proline t-mass F 300 thermal mass flowmeter

Specs at a glance

• Max. measurement error

  Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

• Measuring range

  0.5 to 3750 kg/h (1.1 to 8250 lb/h)

• Medium temperature range

  -40 °C to +180°C (-40 °F to +356 °F)

• Max. process pressure

  PN40 / Cl. 300 / 20K

• Wetted materials

  Measuring tubes
  DN 15 to 50 (½ to 2"): stainless cast steel, CF3M/1.4408
  DN 65 to 100 (2½ to 4"): stainless steel, 1.4404 (316/316L)
  Process connections
  Flange connections
  Stainless steel, 1.4404 (F316/F316L)
  Threaded connections
  Stainless steel, 1.4404 (316/316L)
  Sensing element
  Unidirectional
  Stainless steel, 1.4404 (316/316L)
  Alloy C22, 2.4602 (UNS N06022);
  Bidirectional
  Stainless steel, 1.4404 (316/316L)
  Reverse flow detection
  Stainless steel, 1.4404 (316/316L)
