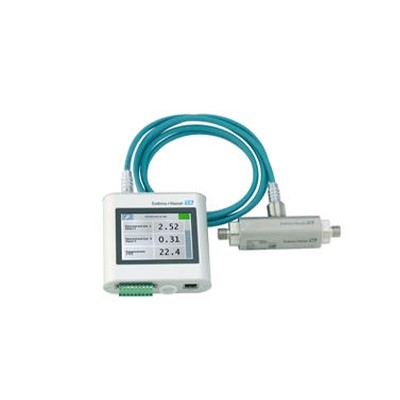

Teqwave F – Ultrasonic concentration meter

Specs at a glance

• Max. measurement error

  Acoustic density: ±0.01g/cm³
  Temperature: ±0.5K
  Sound velocity: +-2m/s

• Measuring range

  Concentration According to concentration app data sheet, maximum 0 to 100 %
  Sound velocity 600 to 2000 m/s
  Temperature maximum 0 to +100 °C (32 to +212 °F)
  Acoustic Density 0.7 to 1.5 g/cm³

• Medium temperature range

  0 to 100 °C (32 to 212 °F)

• Process temperature

  0 to 100 °C (32 to 212 °F)

• Max. process pressure

  max. 16 bar at 20 °C (232 psi at 68 °F)

• Process pressure

  max. 16 bar at 20 °C (232 psi at 68 °F)

• Wetted materials

  Stainless steel 1.4571 (316 Ti)
