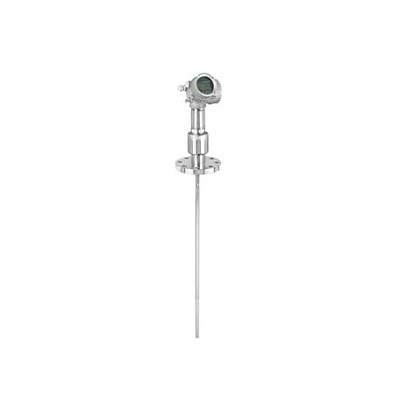

Levelflex FMP54

Specs at a glance

• Accuracy

  Rod probe: +/- 2 mm (0.08 in)
  Rope probe <= 15 m (49 ft):
  +/- 2 mm (0.08 in)
  Rope probe > 15 m (49 ft):
  +/- 10 mm (0.39 in)
  Coaxial probe: +/- 2 mm (0.08 in)

• Process temperature

  XT: -196...+280 °C
  (-321...+536 °F)
  HT: -196...+450 °C
  (-321...+842 °F)

• Process pressure / max. overpressure limit

  Vacuum...400 bar
  (Vacuum...5800 psi)

• Max. measurement distance

  Rod:
  10 m (33 ft) Min DK>1.6
  Rope:
  25 m...30 m (82 ft...98 ft) Min DK>1.6;
  30 m...45 m (98 ft...148 ft) Min DK >1,9
  Coaxial probe: 6 m (20 ft) Min DK>1.4

• Main wetted parts

  Rod probe:
  304, 316L, Alloy C, Ceramic
  Rope probe:
  304, 316, 316L, Alloy C, Ceramic
  Coaxial probe:
  304, 316L, Alloy C, Ceramic
