Infrared Thermometer WA-SSM
  • Infrared Thermometer WA-SSM
  • Infrared Thermometer WA-SSM

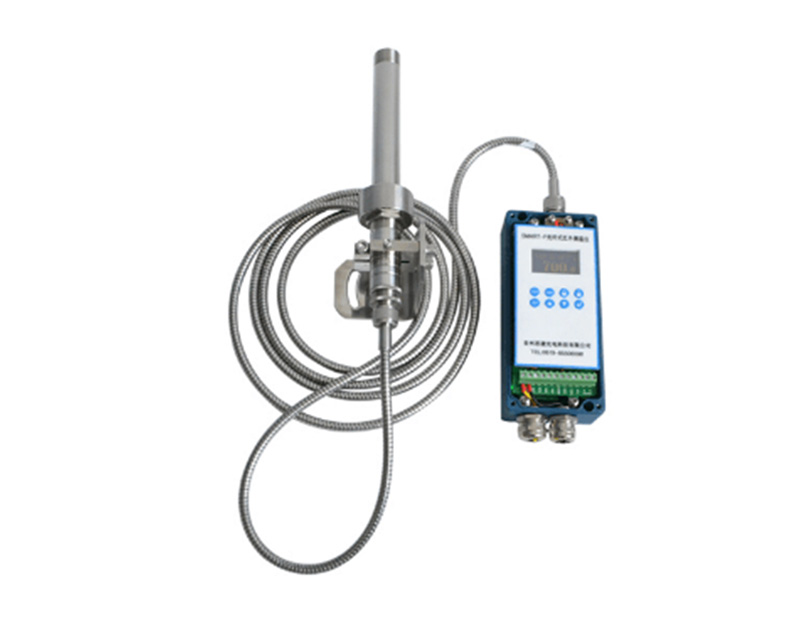

Infrared Thermometer WA-SSM

Changzhou Wheat Automation Technology CO.,LTD is a high-tech company engaged in electronic products . The company was established in May 2012, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Company mainly engaged in electronic products,Such as :Laser distance sensor, temperature sensor, Ultrasonic Level Meter, Isolator…

Share
  • Description
  • Prameters
  • Equipment photos

Changzhou Wheat Automation Technology CO.,LTD is a high-tech company engaged in electronic products . The company was established in May 2012, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Company mainly engaged in electronic products,Such as :Laser distance sensor, temperature sensor, Ultrasonic Level Meter, Isolator…

Changzhou Wheat Automation Technology CO.,LTD is a high-tech company engaged in electronic products . The company was established in May 2012, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Company mainly engaged in electronic products,Such as :Laser distance sensor, temperature sensor, Ultrasonic Level Meter, Isolator…

modelWA-SSM-F-S6016WA-SSM-F-S7018WA-SSM-F-S8025
Temperature range600℃~1600℃700℃~1800℃800℃~2500℃
detectorSi / Si (stacked silicon)
Working wavelengthWavelength 1: (0.7-1.08) μm, wavelength 2: 1.08 μm
main applicationContinuous casting, hot rolling, induction heating, polycrystalline silicon and monocrystalline silicon, high temperature applications temperature measurement
Distance coefficient50: 1 or 100: 1150:1150: 1 or 200: 1
Measuring distanceFixed focal length 0.2m or more, adjustable focal length 0.15m to infinity adjustable
measurement accuracy± 0.5% tm ℃ (tm is the upper limit of temperature range)
Temperature resolution0.1℃
Repeat accuracy±2℃
Monochrome coefficient0.100 ~ 1.000, Adjustable in 0.001 increments
Two-color coefficient0.850 ~ 1.150, Adjustable in 0.001 increments
Response timeAdjustable – the fastest response time is 10ms ~ 99.99s
Signal ProcessingPeak, trough, average, high temperature and low temperature alarm, monochrome, two-color switchable, power-down protection and other functions
    OutputResolution 0.1℃,Analog 16bit output (4mA~20mA,0mA~20mA,0V~5V,0V~10V optional ),The maximum Load of the current loop output is 600Ω,current output 10mA
Analog 12bit output 4mA ~ 20mA, resolution 1 ℃, the maximum load 600Ω
Resolution 1℃,Analog 12bit output 4mA~20mA, the maximum load: 600Ω
Alarms output: High or low process temperature alarm;PhotoMOS relay( on  resistance≤25Ω,current limit : 150mA,Maximum voltage:  AC250V or DC300V)
PNP level output(current output 100mA,with overload protection.)
Display methodUse of self-luminous industrial OLED display
 Power supplyDC (20 ~ 30) V, power consumption: 5W (24V @ 200mA), with overvoltage, overcurrent, short circuit protection,Built-in EMI filter, anti-2500VDC burst interference.
Preheat timeBuilt-in constant temperature heater, power 10min after temperature measurement
Aiming method Built-in visible red laser aiming
 Operating temperature Thermometer: -30 ℃ ~ +55 ℃, without water cooling; -30 ℃ ~ +120 ℃, with water coolingLens and fiber: -30 ℃ ~ +250 ℃
IP rating IP54
