IS-DT500VW of low temperature infrared thermometer for short microwave

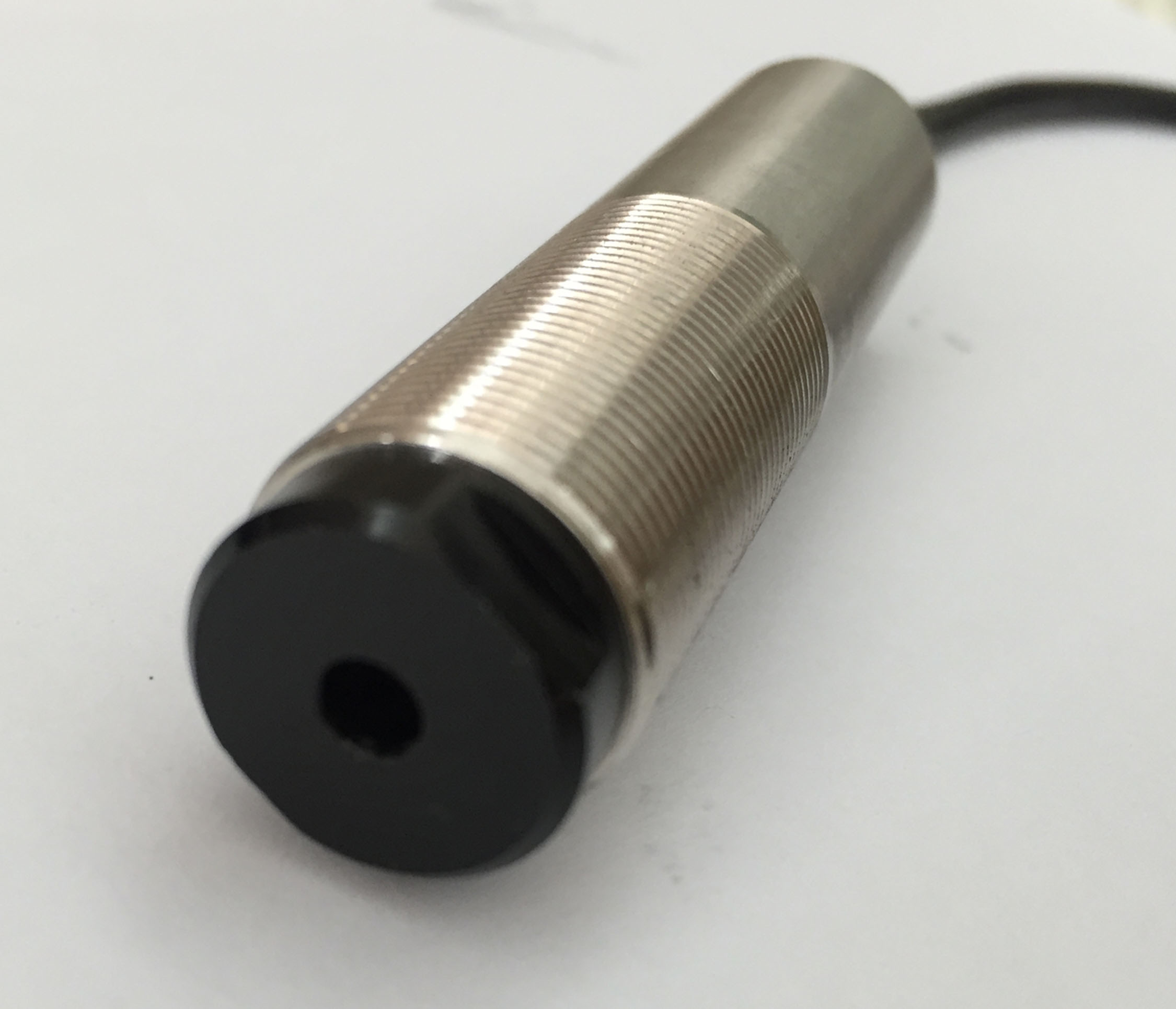

IS-DT500VW short microwave special low temperature infrared thermometer is an integrated infrared thermometer,

the sensor, optical system and electronic circuit are integrated in the stainless steel shell;

easy to install, the standard thread on the stainless steel shell can be quickly connected with the installation site;

At the same time, there are various types of options (such as laser sight,

mounting support, adjustable mounting support, etc.)

to meet the requirements of various working conditions.


Share
  • Description
  • Prameters
  • Equipment photos

IP65 of Protection NEMA-4

ambient temperature 0~60°C

Storage temperature -20~80°C

Relative humidity 10-95%(no dew)

Stainless steel

Size M18×1, total length :68 mm

Cable length 2 m (standard) may also be extended on its own

Net weight :140 g


Spectral range 8~14µm

Temperature range 0~500°C

Distance coefficient ratio D:S =15:1

300 ms (95%) response time

Take ±2% or ±2°C for measuring accuracy (ring temperature :23°C 5°C)

±1℃ of repeated precision measurements

emissivity 0.95 1.0 fixed

Output resolution :1℃


24 VDC power supply

50 mA maximum current

Output signal 0~5 V (linear correspondence)
