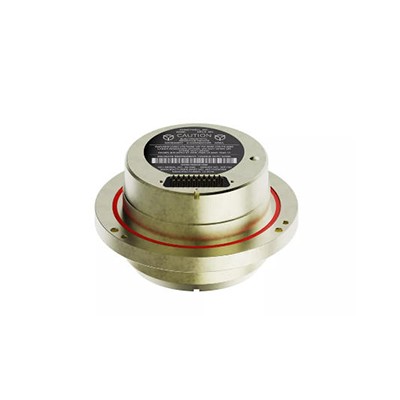

The HG1700’s three ring laser gyroscopes (RLG), three quartz resonating beam accelerometers (RBA) and associated electronics are all environmentally sealed in rugged aluminum housing. The sensors in the HG1700 IMU have excellent stability characteristics – the bias stability term is negligible in thermally stable environments – and as such bias performance is specified as the combination of both stability and repeatability. The HG1700 also employs an external environmental ring isolator to filter unwanted sensor inputs commonly encountered in real world applications.
The HG1700 consumes less power than competing fiber optic gyro-based systems and simplifies system integration by offering many configurable features – such as data rate output and flight control filtering. External heat sinks and cooling are not required by HG1700, facilitating greater flexibility in systems design and integration.
The HG1700 is now offered in two variants, five performance grades, and thirty different off the shelf configurations, more than any other IMU in its class. The HG1700SG is the latest fully qualified variant and has the same best in class capabilities as the HG1700AG but in a smaller package. The HG1700SG is shorter and lighter than the HG1700AG.
The HG1700 consumes less power than competing fiber optic gyro-based systems and simplifies system integration by offering many configurable features – such as data rate output and flight control filtering. External heat sinks and cooling are not required by HG1700, facilitating greater flexibility in systems design and integration.
The HG1700 is now offered in two variants, five performance grades, and thirty different off the shelf configurations, more than any other IMU in its class. The HG1700SG is the latest fully qualified variant and has the same best in class capabilities as the HG1700AG but in a smaller package. The HG1700SG is shorter and lighter than the HG1700AG.
