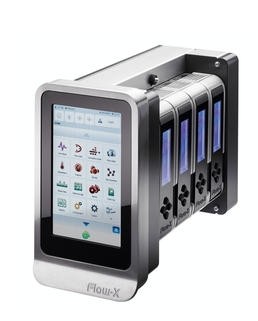

Flow-X

Specs at a glance

• Number of applications

  Support up to 4 gas runs or 2 liquid runs per module (Flow-X/M, Flow-X/C)

• Inputs

  6x analog transmitter input, high accuracy
  Input types are 4 to 20 mA, 0 to 20 mA, 0 to 5 V, 1 to 5 V
  Accuracy mA inputs; 0.002% FS at 21 °C, 0.008% at full ambient range of 0-60 °C, long-term
  stability 0.01% per year
  Resolution: 24 bits. Analog inputs have the same earthing relative to all other electronic devices.

  16x digital status inputs. Resolution 100ns (10MHz)

• Outputs

  4x analog output for process outputs and flow / pressure control. Resolution 14 bits, 0.075% FS.
  Analog outputs share same ground floating in relation to all other electronics.

  16x digital output, open collector. Rating 100mA @24V
