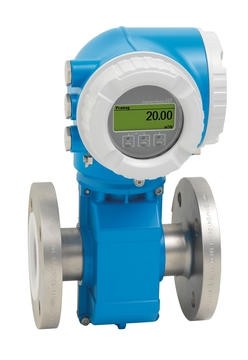

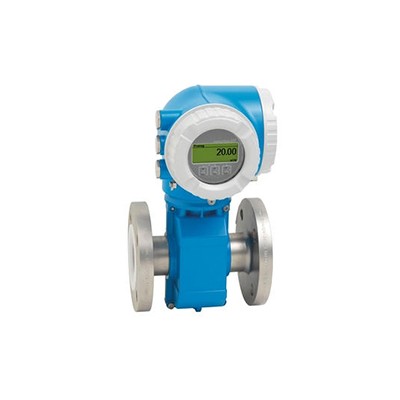

Proline Promag P 300 electromagnetic flowmeter

Specs at a glance

Max. measurement error

Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)

Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

Measuring range

4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

Medium temperature range

Liner material PFA: –20 to +150 °C (–4 to +302 °F)

Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)

Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

Max. process pressure

PN 40, Class 300, 20K

Wetted materials

Liner: PFA; PTFE

Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
